The COTECHNIK SprayBoy H2 (SB01) is a European-engineered spray coating system designed for internal rehabilitation and protective lining of pipelines ranging from DN50 to DN500.
Ideal for the application of 2-component epoxy and polyuria coatings, the system ensures uniform, high-quality film build and long-term corrosion resistance in sewer and stormwater infrastructure.
Built for precision, portability, and reliability, the SprayBoy H2 is trusted worldwide for efficient trenchless coating applications.
Technical Specifications
| Description |
Details |
| Pipe Diameter Range |
DN50 – DN300 |
| Hose Length |

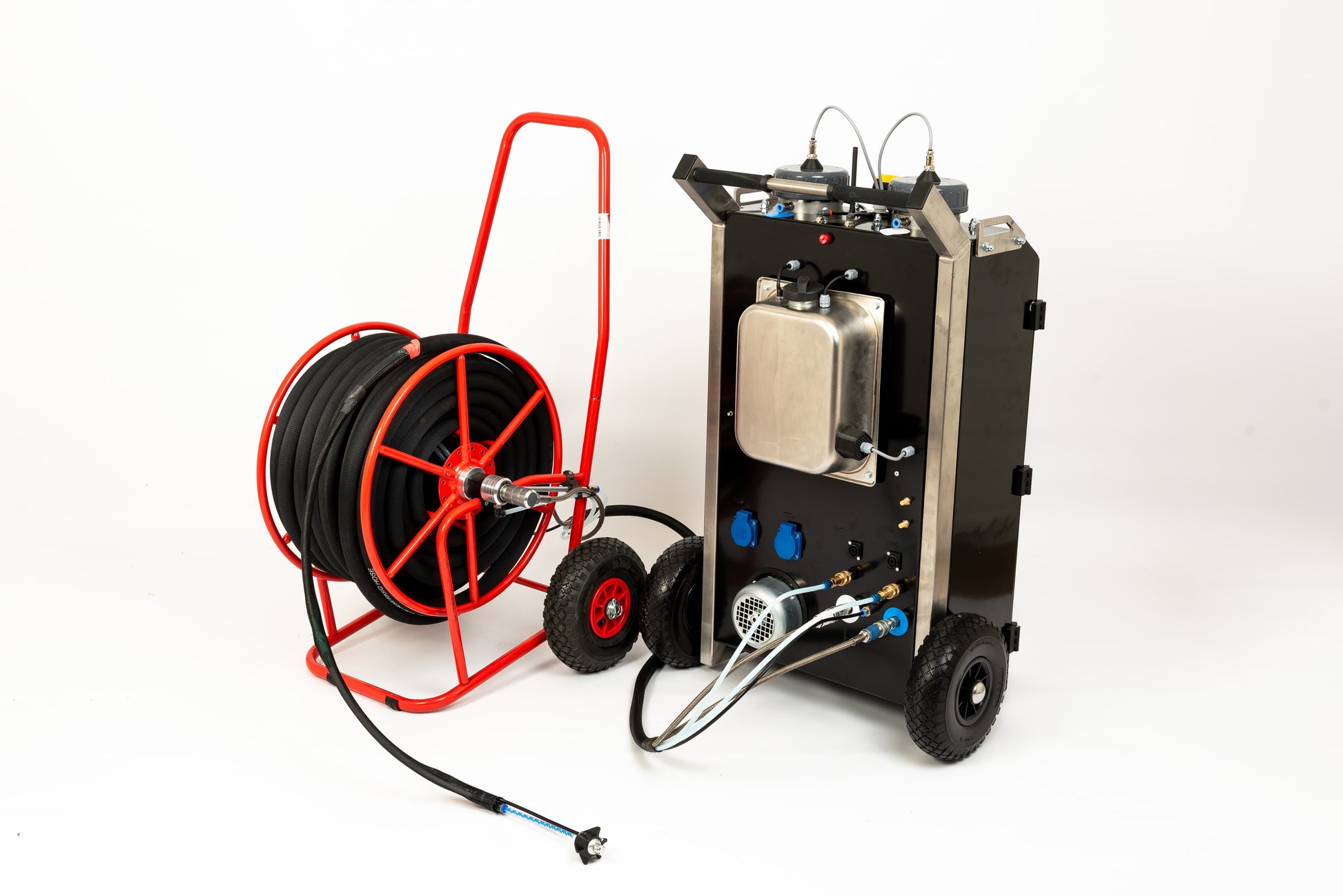

40 m on retractable hose reel (extendable by 20 m) |
| Consists Of |
1x water-heated hose reel (40 m), 1x operation manual, 1x remote control |
| Spray Coating Material |
2-component epoxy resin |
| Sprayhead Operation |
Air-driven spray head with variable speed |
| Heating System |
Water-heated pump and water-heated hoses |
| Operating System |

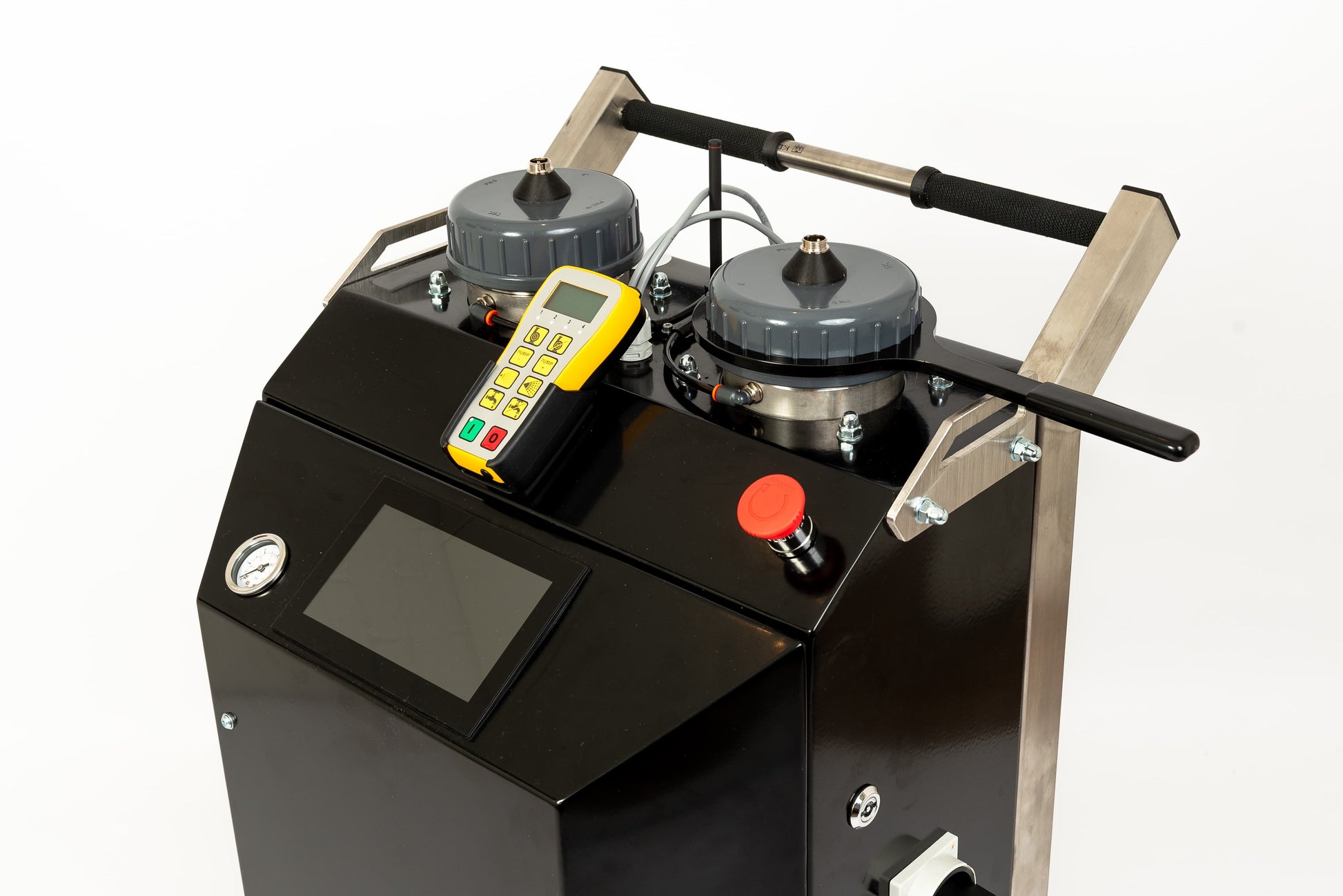

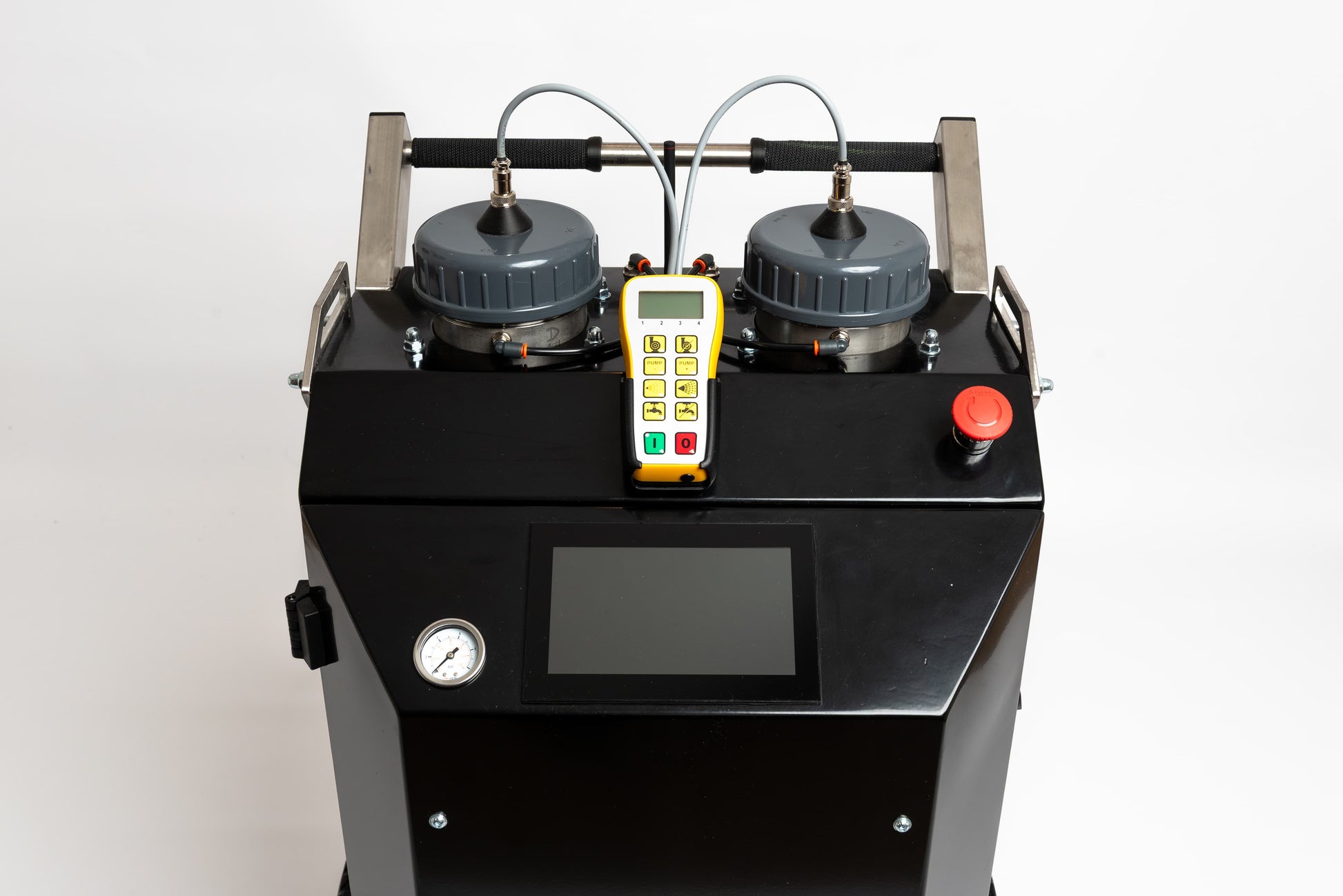

Integrated 7" TFT display and remote control with built-in charger |
| Compressed Air Input |
2.5 bar (min) – 10 bar (max) |
| Air Volume Requirement |
120 L/min |
| Rated Input Voltage (U) |
230 V~, 50–60 Hz |
| Sound Emission |
Max. 60 dB(A) |
| Power Output (P) |
2500 W |
| Dimensions (L × B × H) |
51 × 68 × 110 cm |
| Weight |
85 kg |
| Compressor |
Separate compressor required |
Key Benefits
-
European-engineered for precision epoxy spray coating.
-
Compact, portable, and easy to operate on-site.
-
Variable-speed, air-driven spray head for consistent results.
-
Water-heated hoses maintain ideal resin temperature.
-
Integrated touchscreen and wireless remote control for full operator control.
