Our SANIUV inversion system is designed for sewer laterals, vertical stacks and smaller mainline shots 60 meters and below. We have developed this system for smaller diameter relines DN100-DN300, offering a more efficient way to cure liners faster with our SANIUV system.

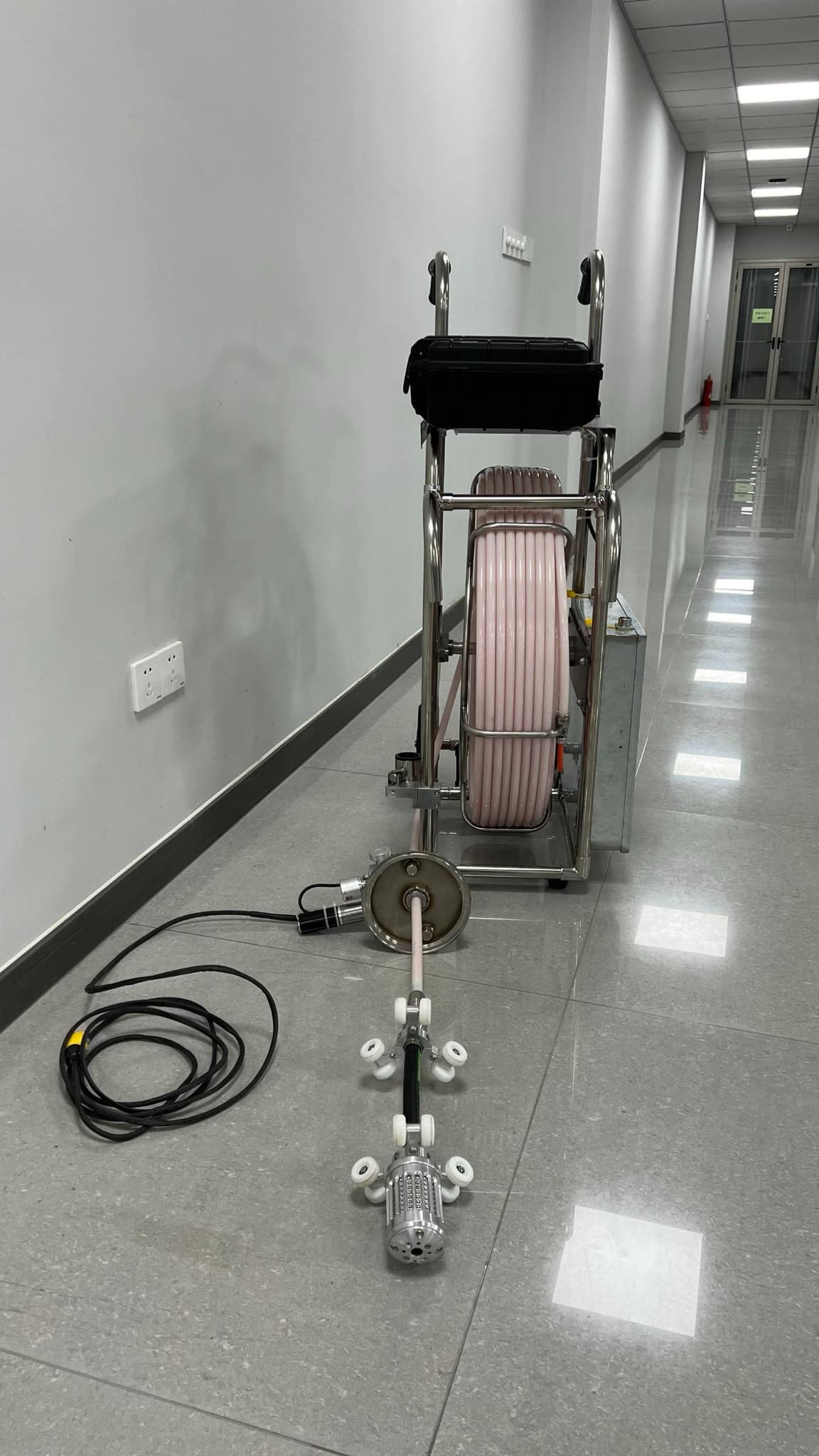

This highly integrated operational system comes equiped with touch screen display control unit for operating, a large built in camera screen with high definition, while being very smooth and easy to operate while being incased in a durable and compact waterproof control unit.

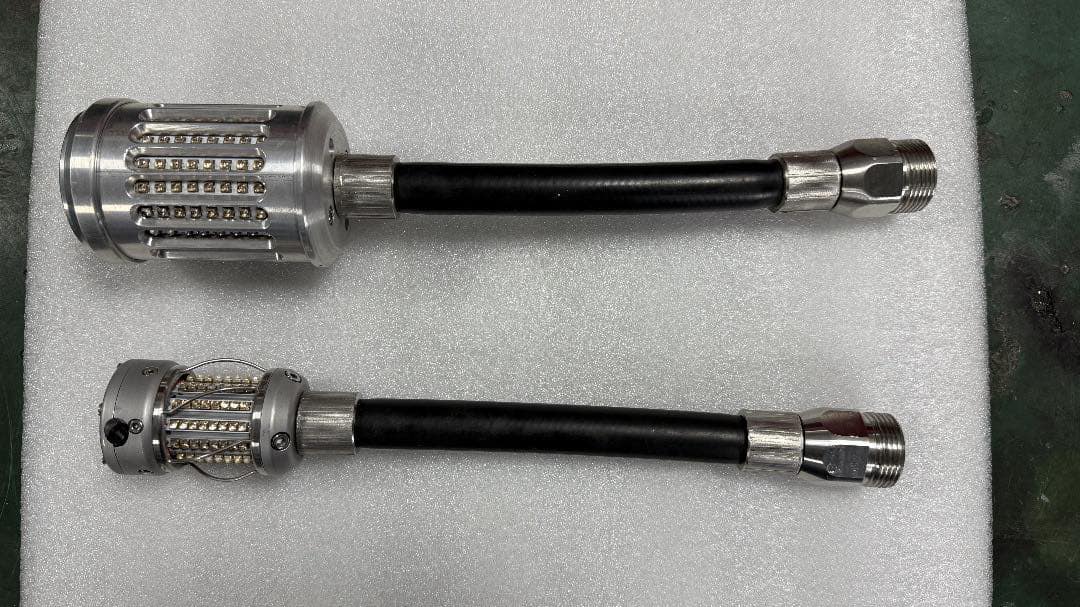

This systems package includes two UV LED heads, one smaller for DN100- 175 and the bigger for DN200-300. While the cable reel is controlled with airflow to keep the lights cooled during the installing process. The built in camera head is self balancing, with LED lighting and High definition to be able to see the liner being cured in the process.
The curing speed is very quick, 1 meter every 30 seconds for DN100. Each system come with a set of end caps for Dn100-DN250 for your mainline shots and an automatic winding device to pull back the cable while curing. Our systems is designed to cure on 90deg and 45deg bends, with the flexibility in the cable. Every system will come with a 2 day training package included, which will do a run down on every bit of detail.
price = AUD 110,000 + GST
