Sanipro Australia X Tubolino Inversion Drum 500
Sanipro Australia X Tubolino Inversion Drum 500
Sanipro Australia X Tubolino Inversion drums:

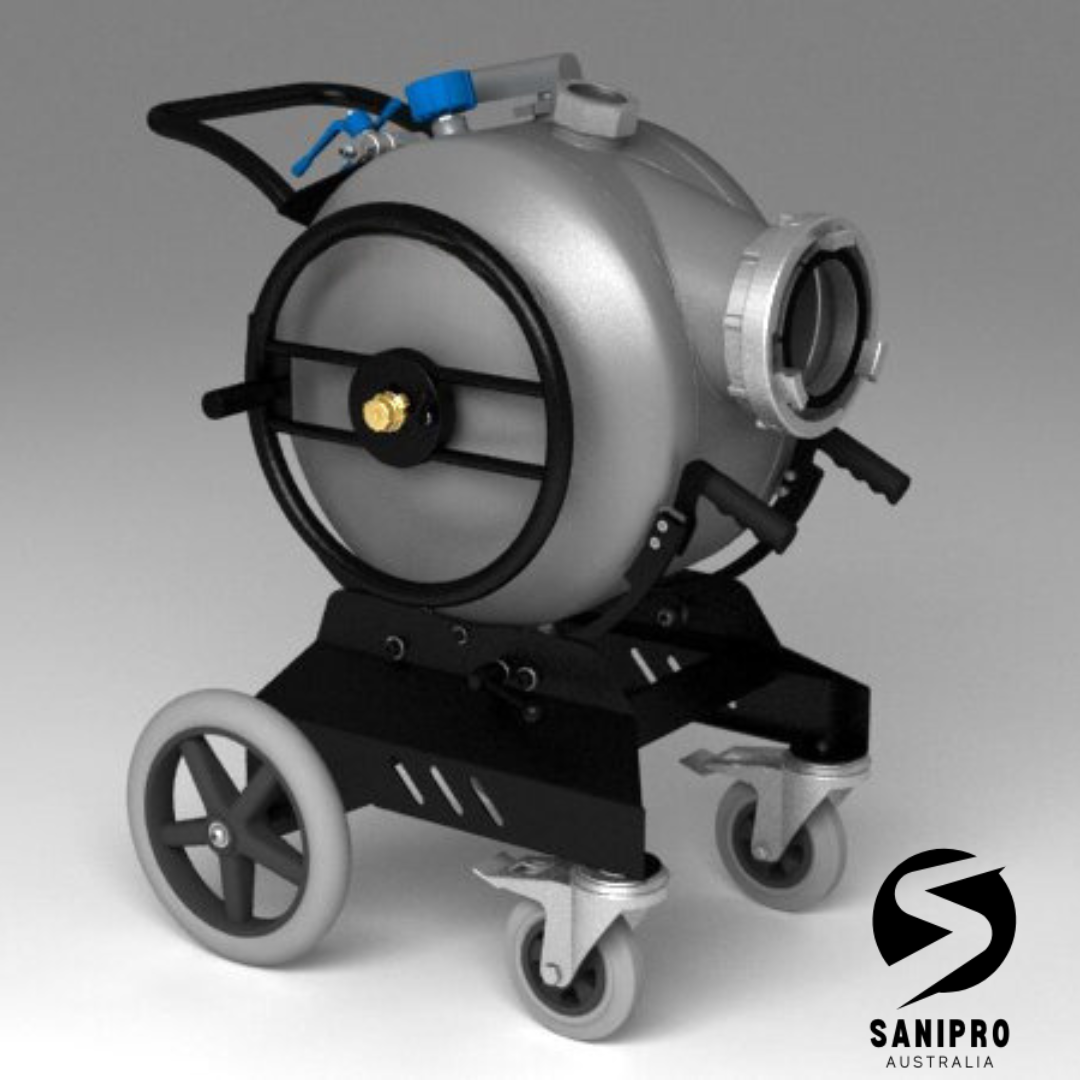

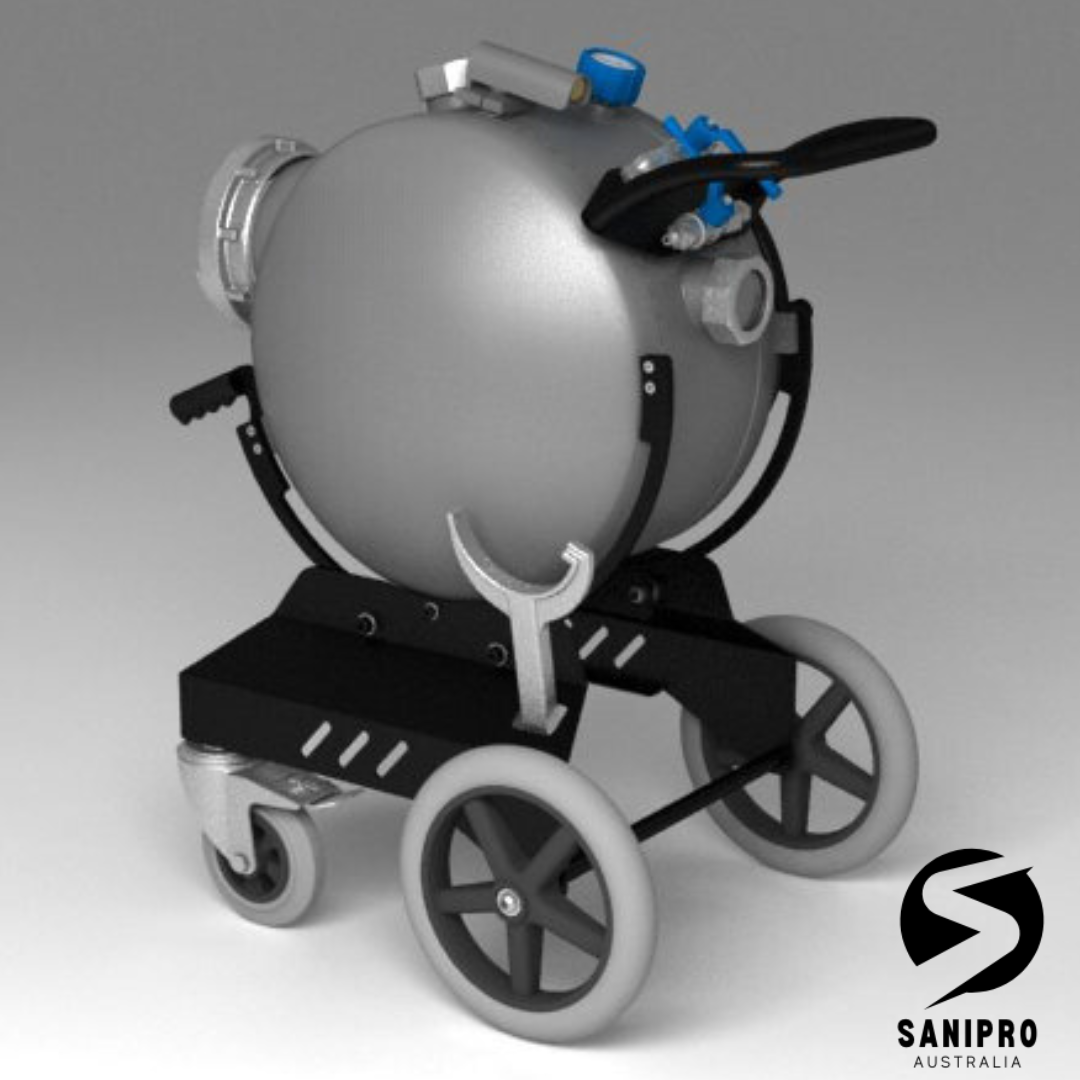

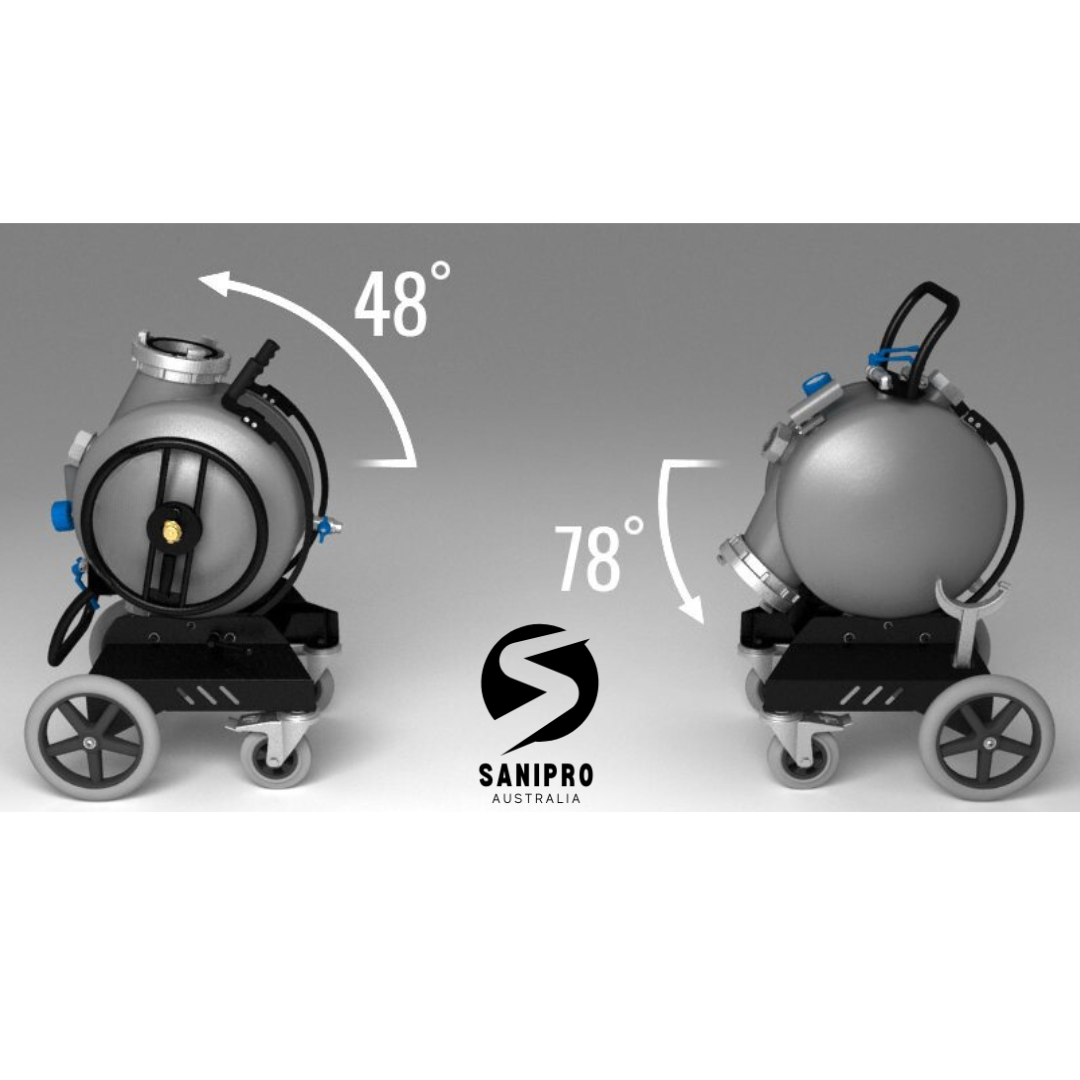

The ID500 is our smaller medium sized inversion drum mounted on a trolley. It can be directed 126° to position the nozzle at a fitting angle for the shoot.
The inversion drum is easy to move due to its low weight and size. It's 500mm in diameter and is made in aluminium to reduce the weight.
The trolley is robust yet slim enough to easily go through doorways or narrow spaces. It has a large wheel giving the operator a better feel of the extrusion process.
The inner surface of the drum is ceramic treated to make it smooth and safe for the liner inside.
Two robust dividers are mounted on the shaft inside limiting the movement of the liner and eliminating the risk of the liner getting stuck inside as it is rolled in and out of the inversion drum.
The trolley is equipped with a holder for the Storz spanner on the side.
6" F-150 Storz coupling for the nozzle
Storz spanner is included
Capacity: approx. 18m DN150 liner depending on liner type and amount of epoxy
