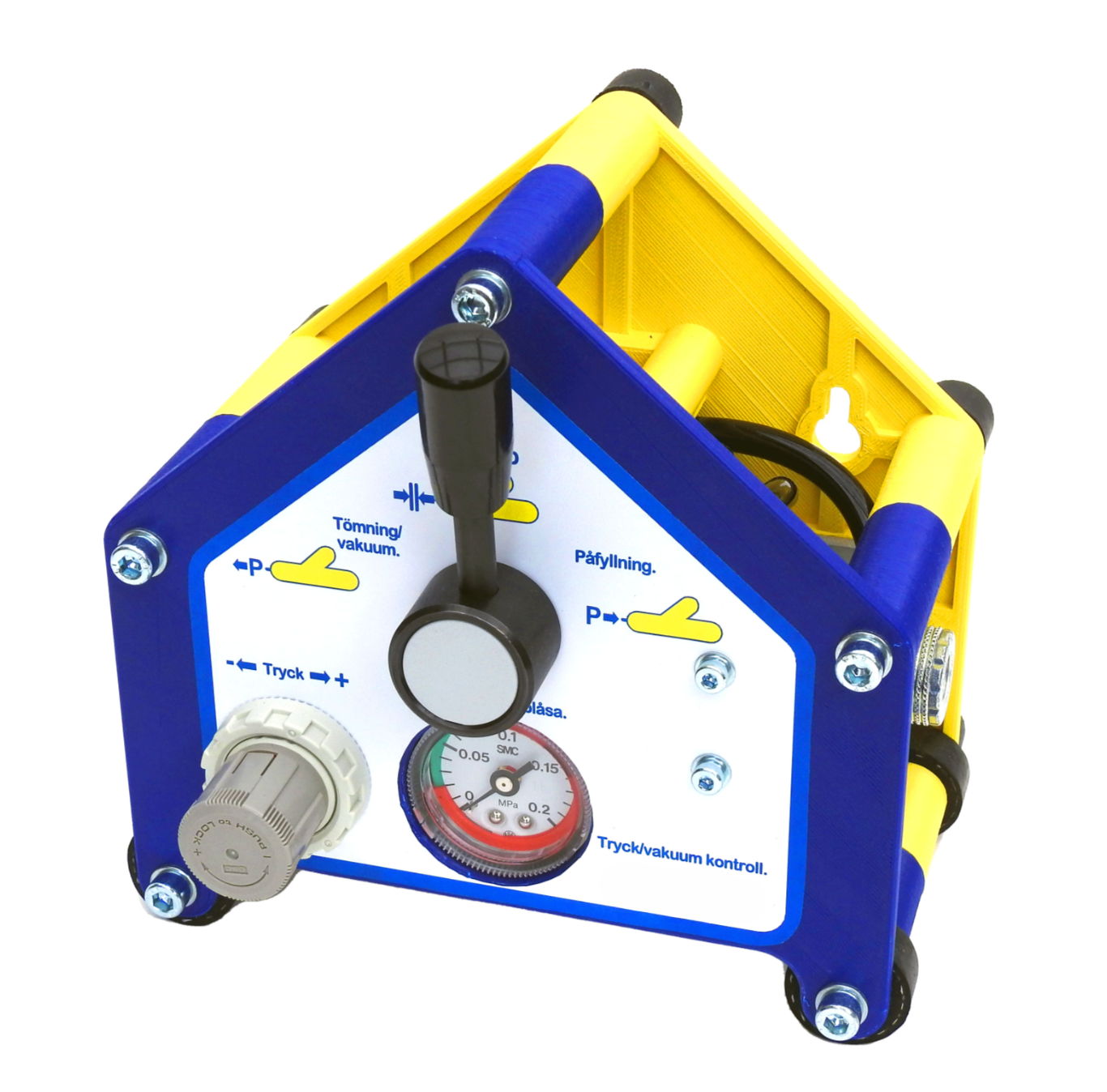

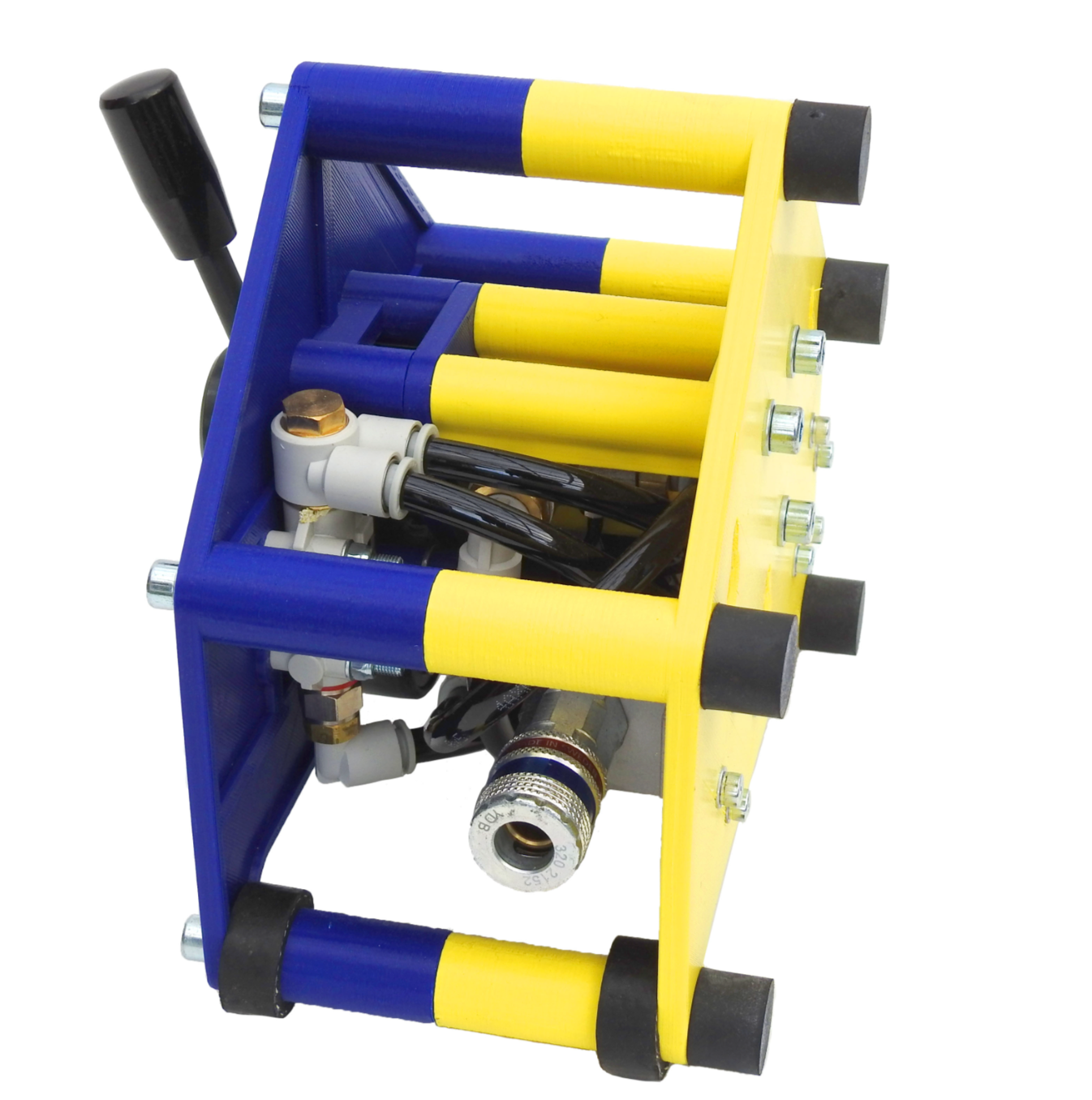

SANIPRO Vacuum/Pressure box

Pressure/Vacuum control Basic is a small compact unit for easy handling when branching. Equipped with an accurate pressure regulator and clear pressure gauge for precise adjustment of the pressure to the branch bladder.
Can be used upright or horizontal, and can also be hung on the wall with a separate wall bracket.

Designed for optimal flow to the branch bladder.

Equipped with four positions.
1) Filling: Pressurizes the branch bladder.
2) Stop: Maintains set pressure.
3) Emptying: Releases pressure from the branch bladder.
4) Vacuum: Vacuums the branch bladder.

Pressure gauge: 0-2 Bar.
Max. supply pressure: 10 Bar.
Suction flow vacuum: approx. 40 liters/minute.
Air consumption: approx. 100 liters/minute. (vacuum ejector)
Outlet pressure: 0.05-2 Bar.

Can be ordered in different colour combinations, standard is yellow front and blue back.
