The CL70 electric milling robot: innovation for efficient house connection processing

Since its market launch two years ago, our CL70 electric milling robot (from DN75) has established itself as a leading product in the field of house connections. Thanks to its advanced technology and sophisticated design, the CL70 offers unrivaled performance and reliability in the processing of house connections.

The CL70 effortlessly negotiates 90° bends and masters dimensional leaps up to DN250 without the need for complex conversion work, thanks to its extremely flexible tensioning bladders and pneumatic muscle feed. As an option, the robot can also be used in pipes up to DN300 with the push carriage.

An innovative concept is the modularity: the user can assemble the system from different case units as required. The most compact configuration consists of the milling robot and the control unit with battery, which keeps investment costs low. For those who want to use the full potential of the robot system, additional options such as a compact compressor case, a tool case and an ergonomic transport trolley are available.

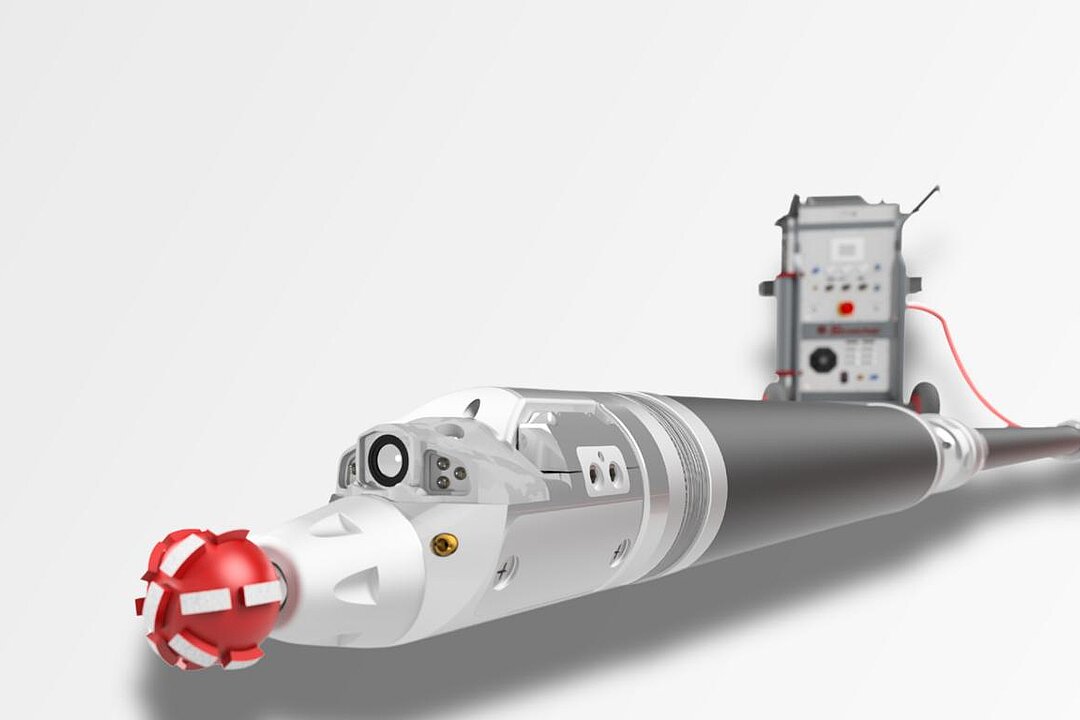

At the heart of the milling system is an efficient and powerful 800W water-cooled electric motor. The entire milling head is protected against the ingress of water by a permanent internal coating. A high-resolution HD camera delivers razor-sharp images in real time, which can be easily documented using the integrated recording function of the control unit, without the need for additional software.

Further details

  • Modern: The latest technology ensures the highest possible productivity & reliability
  • Modular: freely combinable case system offers the right equipment for every challenge
  • Mobile: equipment trolley with docking function for the control unit enables maximum flexibility and ergonomics
  • 2x45° (1x90°) pipe bends do not present an obstacle when retracting or extending
  • Centric clamping in the tube
  • HD color camera module with adjustable LED lighting
  • Integrated water tank with 5 liters
  • Camera cleaning with water and air

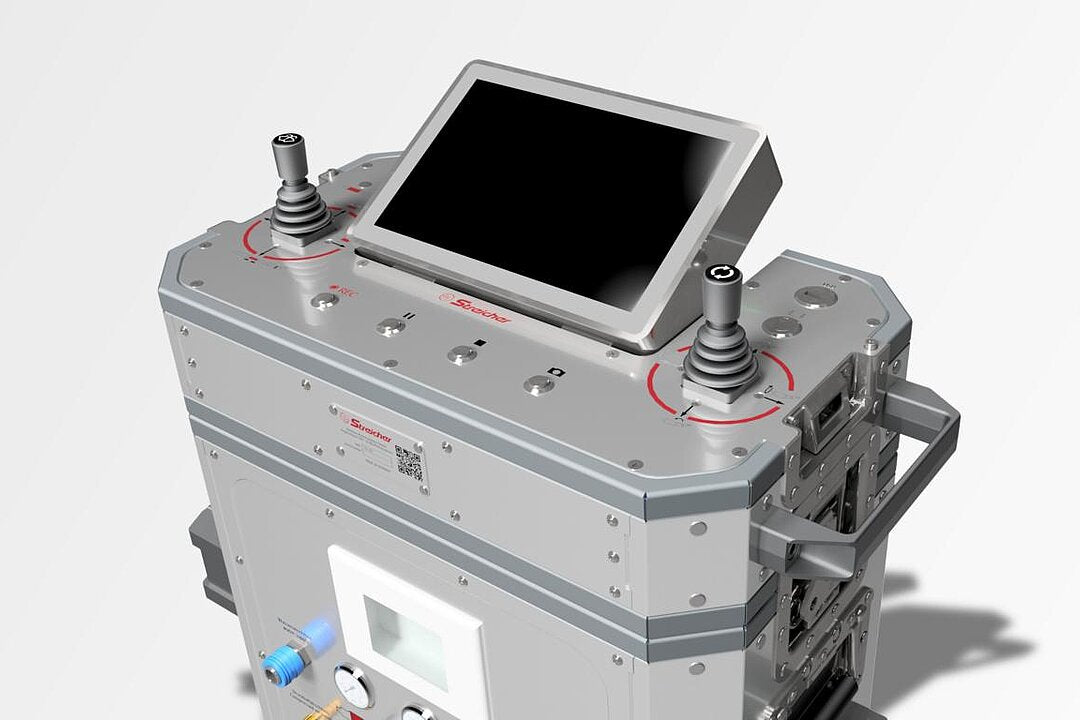

  • Operation via an equipment cart with joystick and touch panel (PLC control)
  • The equipment trolley is equipped with all the necessary tools for use
  • High-contrast monitor
  • Sensors and display messages inform the user about the current status of the robot system
  • Water-cooled milling motor
  • The scope of delivery includes 4 rechargeable batteries and a quick charger (batteries fully charged within 45 minutes)
  • The robot system is pressurized to 1 bar
  • Recording device with integrated hard disk (output to USB)
  • Ready for use without major effort or conversion
  • Accessories
  • Pneumatic feed mechanism (muscle)
  • Extension cable (10 m or 20 m)

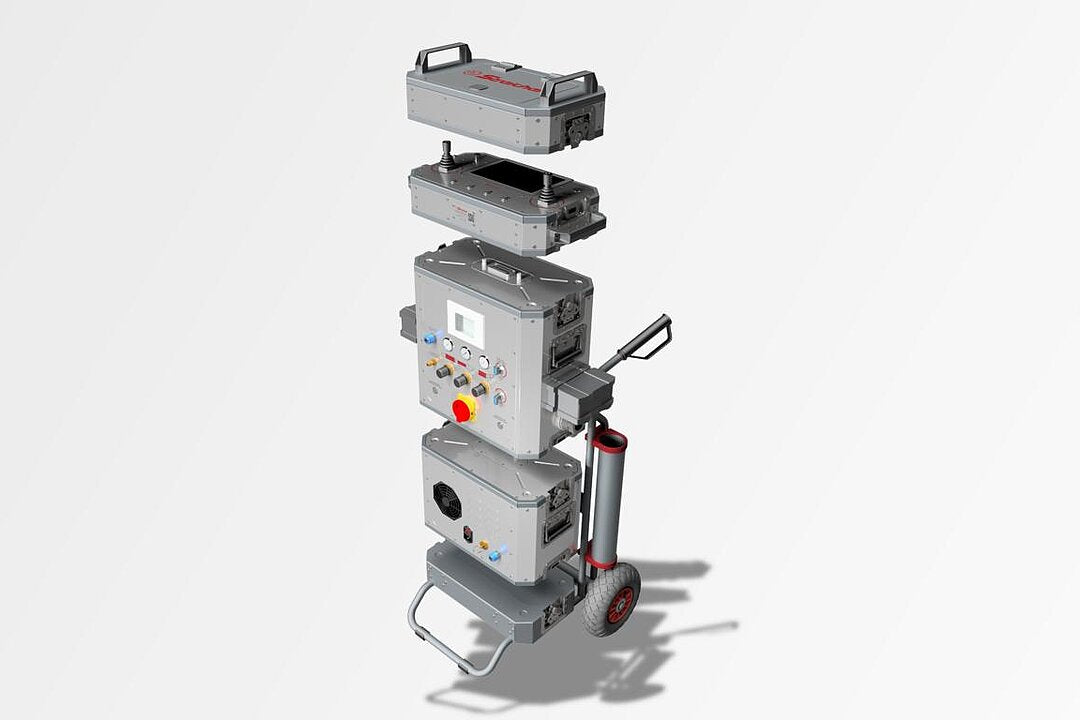

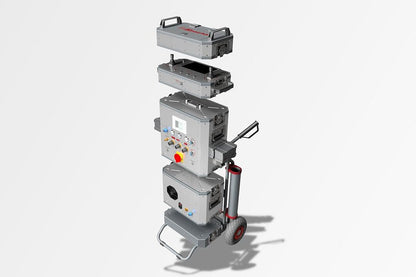

  • Equipment trolley to hold the individual modules
  • Compressor
