CL-50

* CONTACT FOR QUOTE *

Our CL50 milling robot offers the perfect solution for house connection sewers from DN 60. With its compact design, it is the only milling robot of its kind that can work in this nominal width - a unique selling point.

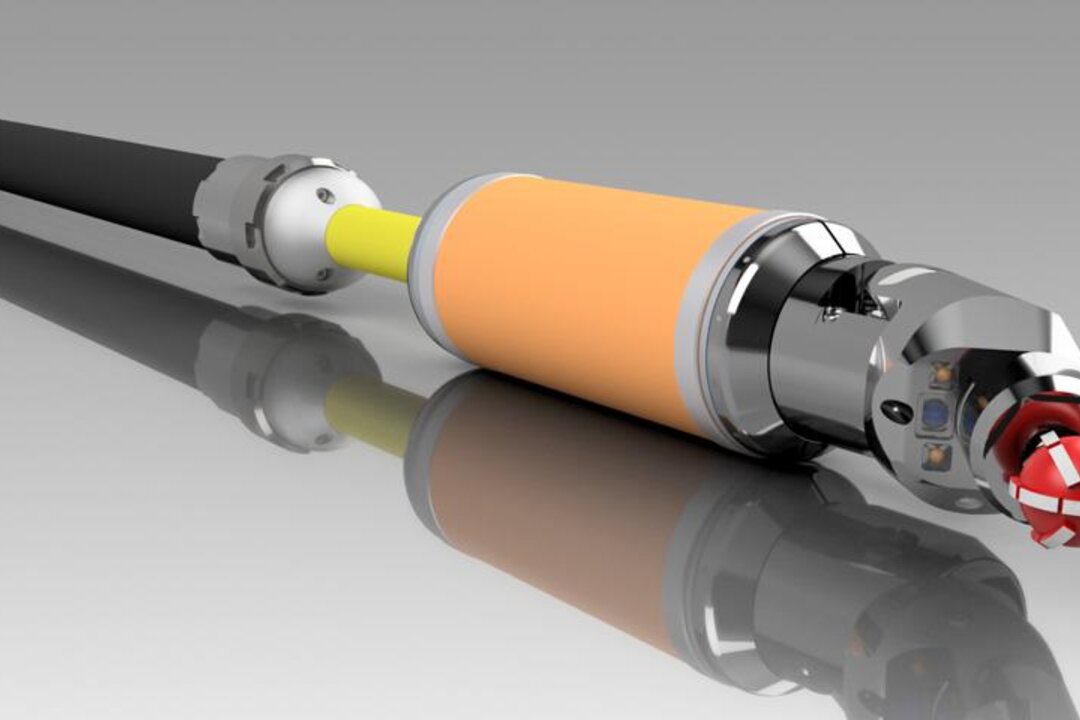

The CL50 effortlessly masters several 90° pipe bends and can move precisely thanks to its swivel angle of over 600°. Movement is driven by the supply line, an additional sliding eel or the optional stepless “muscle feed” feed mechanism. Retraction is achieved by pulling on the supply line and a cable on the milling arm.

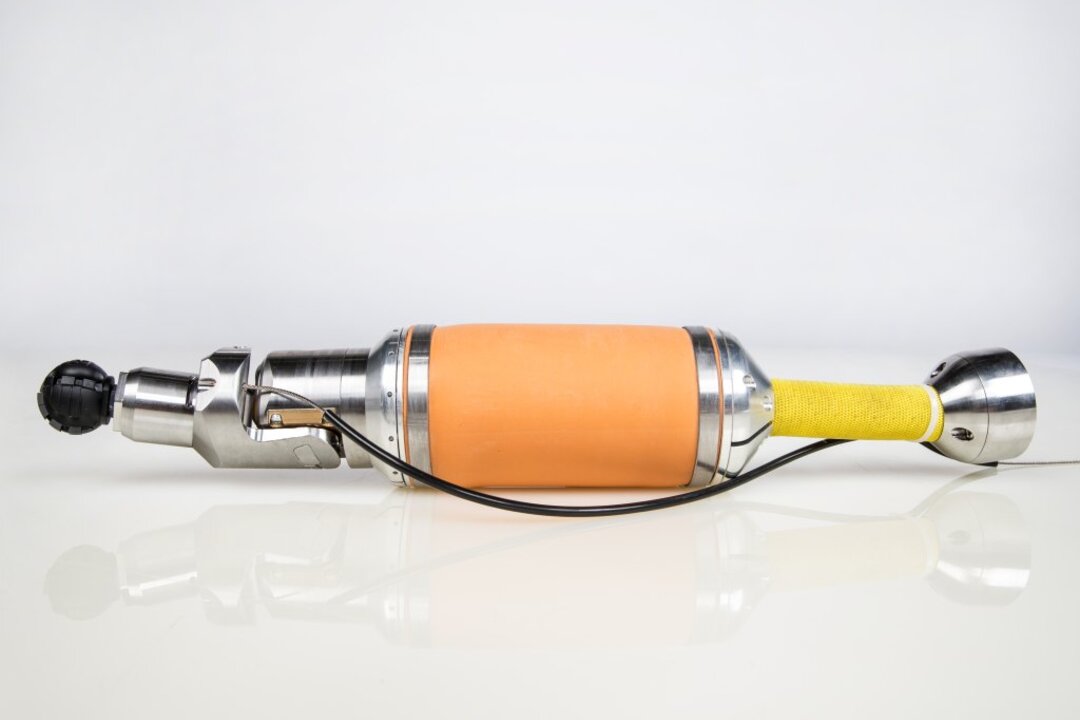

A tension bubble ensures stability in larger pipes, while a color camera and adjustable LED lighting provide a clear view. The camera is cleaned using compressed air and water in combination with the equipment trolley, without the latter, using only compressed air.

It is usually conveniently controlled via a portable control unit (CL50 Compact) or the mobile equipment trolley (CL50). Operation is possible either via a rechargeable battery or a mains adapter.

The CL50 can also be operated via a CL80 equipment trolley.

Accessories

• Extension cable 12.5 m / 25 m / 37.5 m
• Battery operation possible if 230 V AC voltage is not available
• Equipment trolley
• Muscle feed

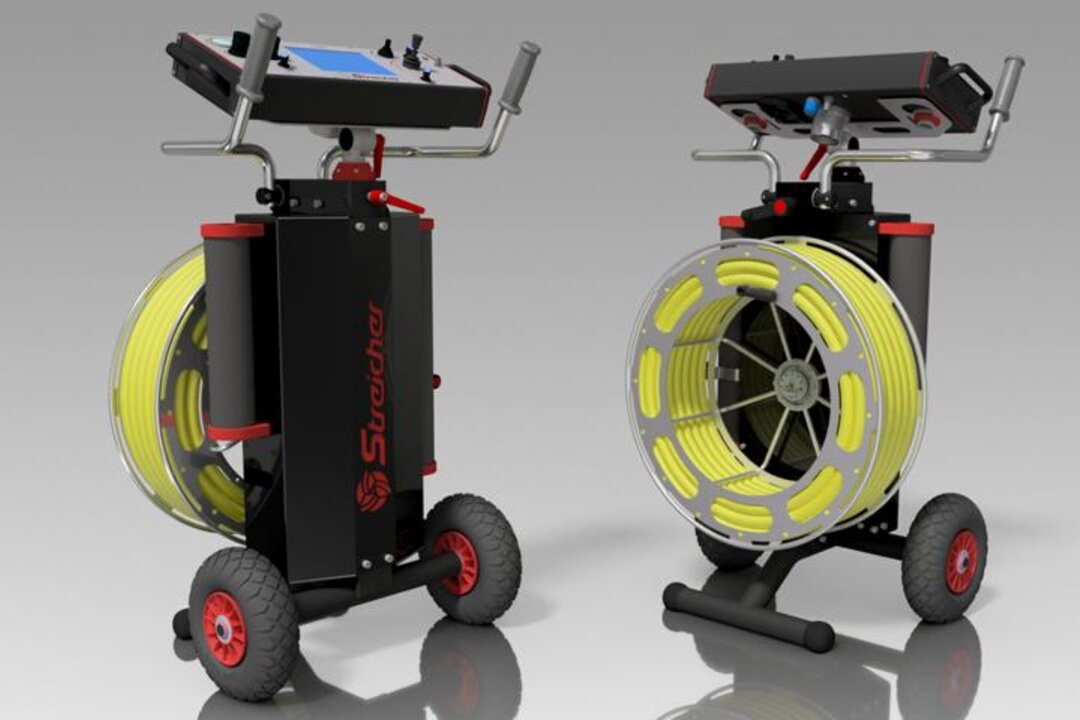

• Equipment trolley:
• Height and tilt adjustable
• Side storage space for robot or muscle feed
• Push handles can be folded down during operation
• Weight 30 kg
• 2 L water tank for camera rinsing
• Integrated air drying unit
• Built-in rotary distributor for feeding through all media
• Pneumatic tires
• 2 exchangeable batteries
