23mm AHD Pipe Inspection Camera self-levelling with 512Hz transmitter.

Robust, high-resolution camera with self-levelling, FULL HD camera head (1920*1080). For duct inspection with high quality AHD camera, which has 4 times sharper resolution than the 23 mm previous model from the same manufacturer. For razor-sharp images. The AHD technology can achieve reliable transmission of high-resolution video signals over long distances (500 metres) on the existing analogue transmission line. A 512 Hz locating transmitter is also built into the camera head.

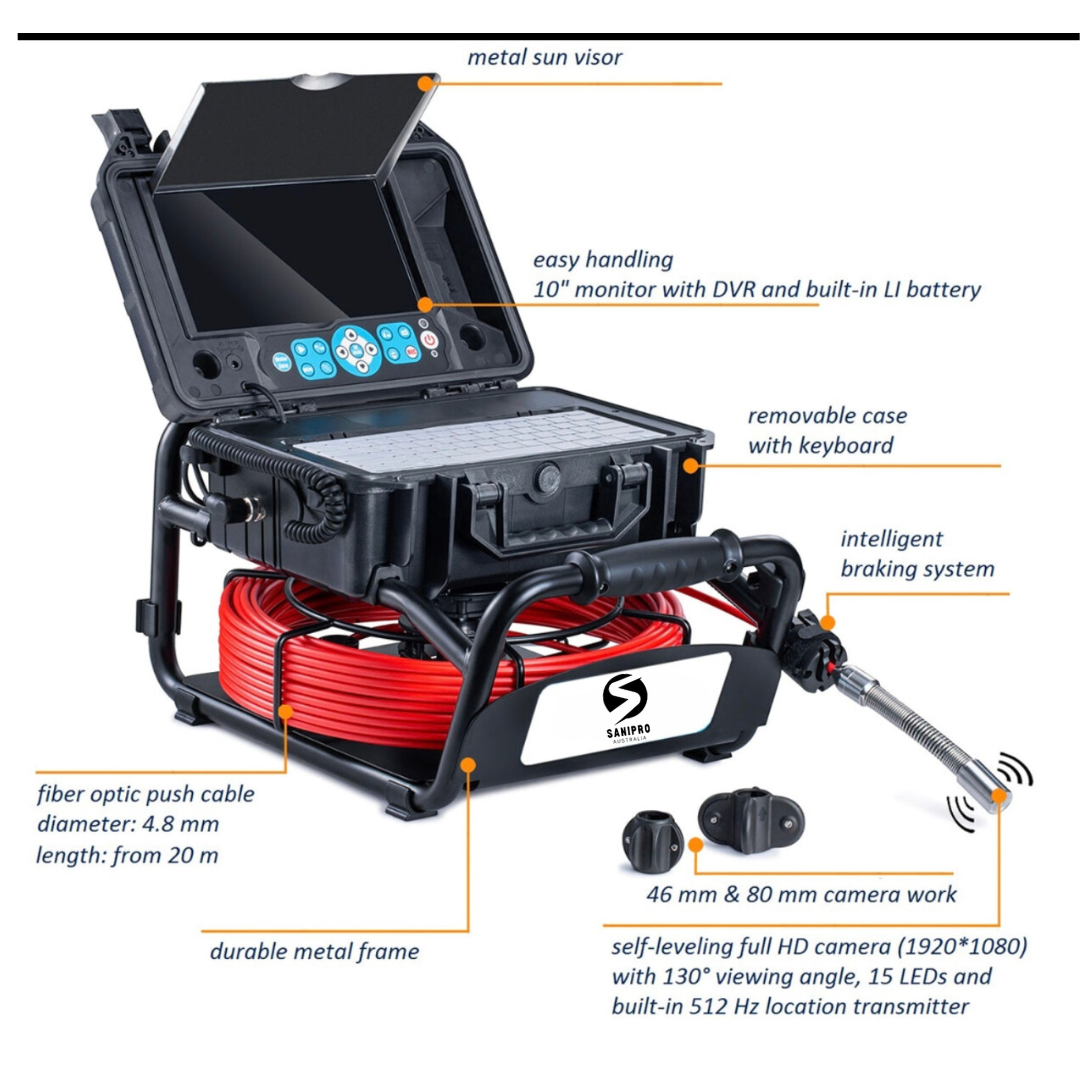

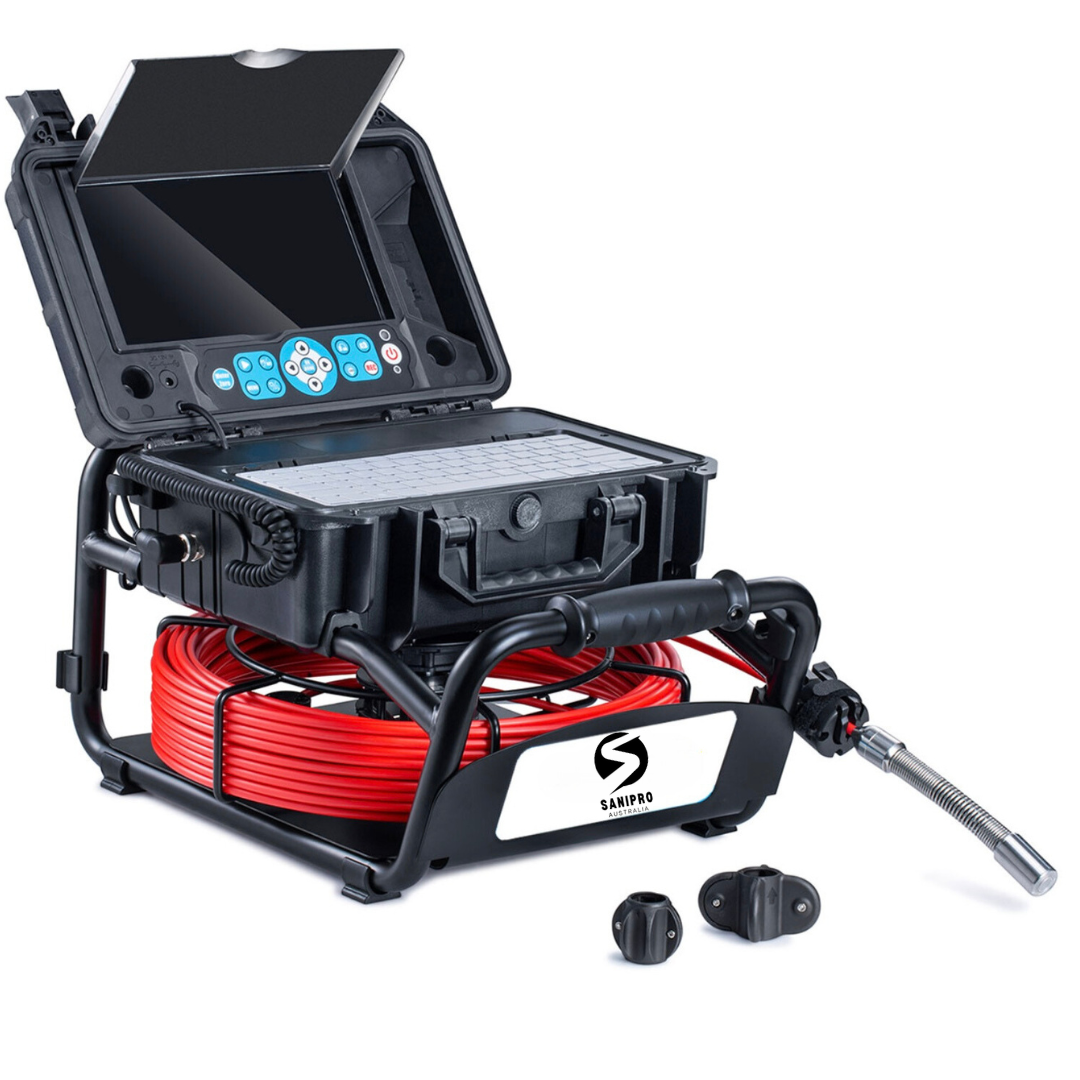

Our low-cost camera system impresses with its waterproof, robust design with immunity to interference and simultaneous top quality due to state-of-the-art camera heads and high-quality LED illumination and a 10 inch monitor with DVR and built-in LI battery. The "all-in-one" system (camera, fibre optic push cable up to 40m, push rod on reel, monitor, keyboard and remote control) offers you the necessary equipment in its enormously compact design to inspect pipes in the range from Ø 50 mm to Ø150 mm. Thanks to the "upright image function" you will never lose your orientation in the pipe and thanks to the 15 LED lights with adjustable luminosity you will always have the ideal illumination for every pipe diameter.

The operating elements on the camera and on the remote control are provided with self-explanatory symbols, so that a quick familiarisation is possible.

By means of a simple operating software, inscriptions can be made at any time during the inspection and the metre counter can be reset. The inscriptions are visible in the stored video after using the canal camera. Recorded images and videos are immediately saved on the SD card and can be transferred directly to the PC in the office.

A software module for 3D pipe runs, posture graphics, possibly required DIN-compliant documentation is not included.
