18 mm AHD Pipe Inspection Camera self-levelling with 512Hz transmitter
18 mm AHD Pipe Inspection Camera self-levelling with 512Hz transmitter
Robust, high-resolution camera with self-levelling FULL HD camera head (1920*1080).
For sewer inspection with high-resolution AHD quality (4 times sharper images than the 23 mm predecessor model from the same manufacturer).
For razor-sharp images. AHD technology can achieve reliable transmission of high-resolution video signals over long distances (500 m) on the existing analogue transmission line. A 512 Hz locating transmitter is also built into the camera head.
Our low-cost camera system impresses with its waterproof, robust design with immunity to interference and simultaneous top quality due to state-of-the-art camera heads and high-quality LED illumination and a 10 inch monitor and built-in LI battery.

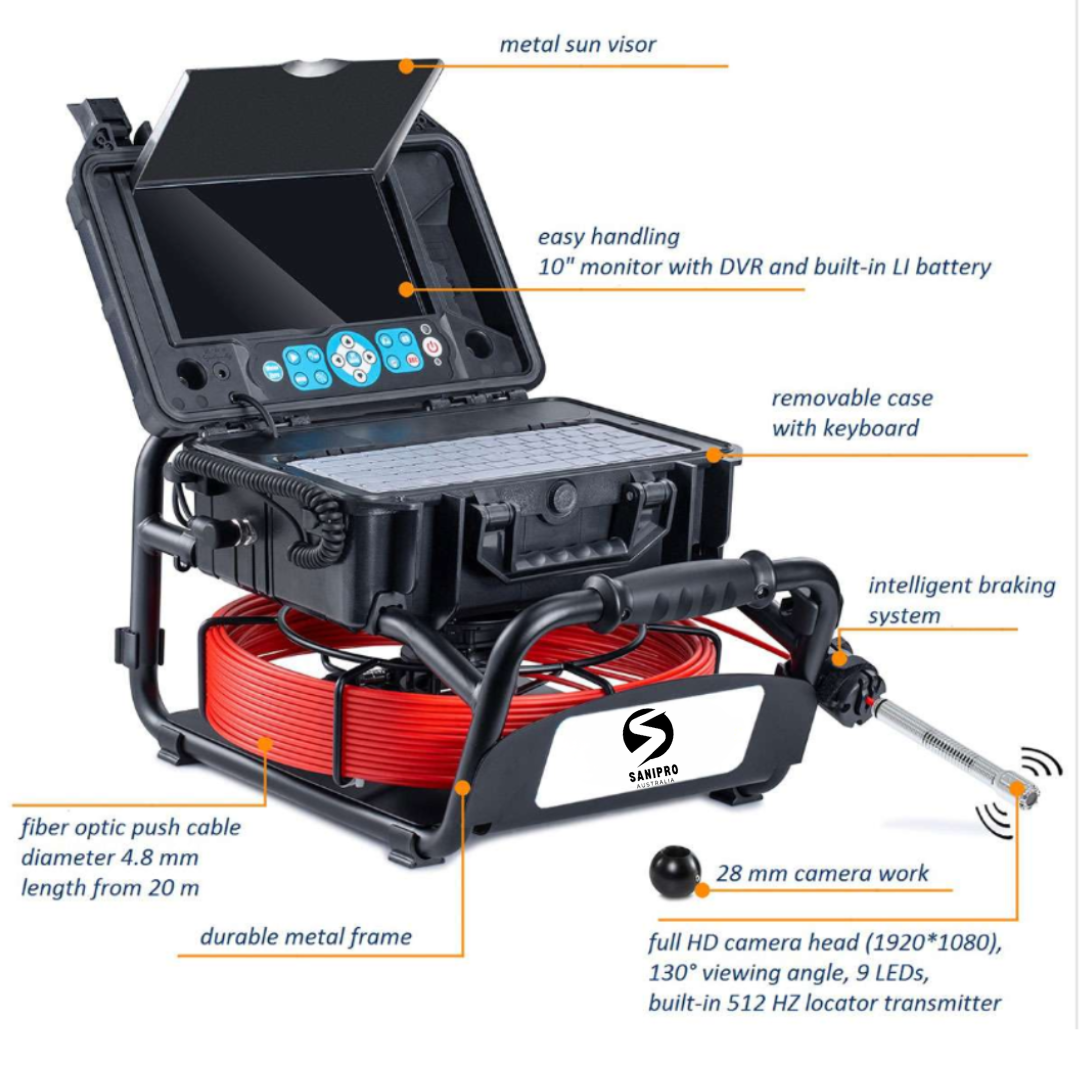

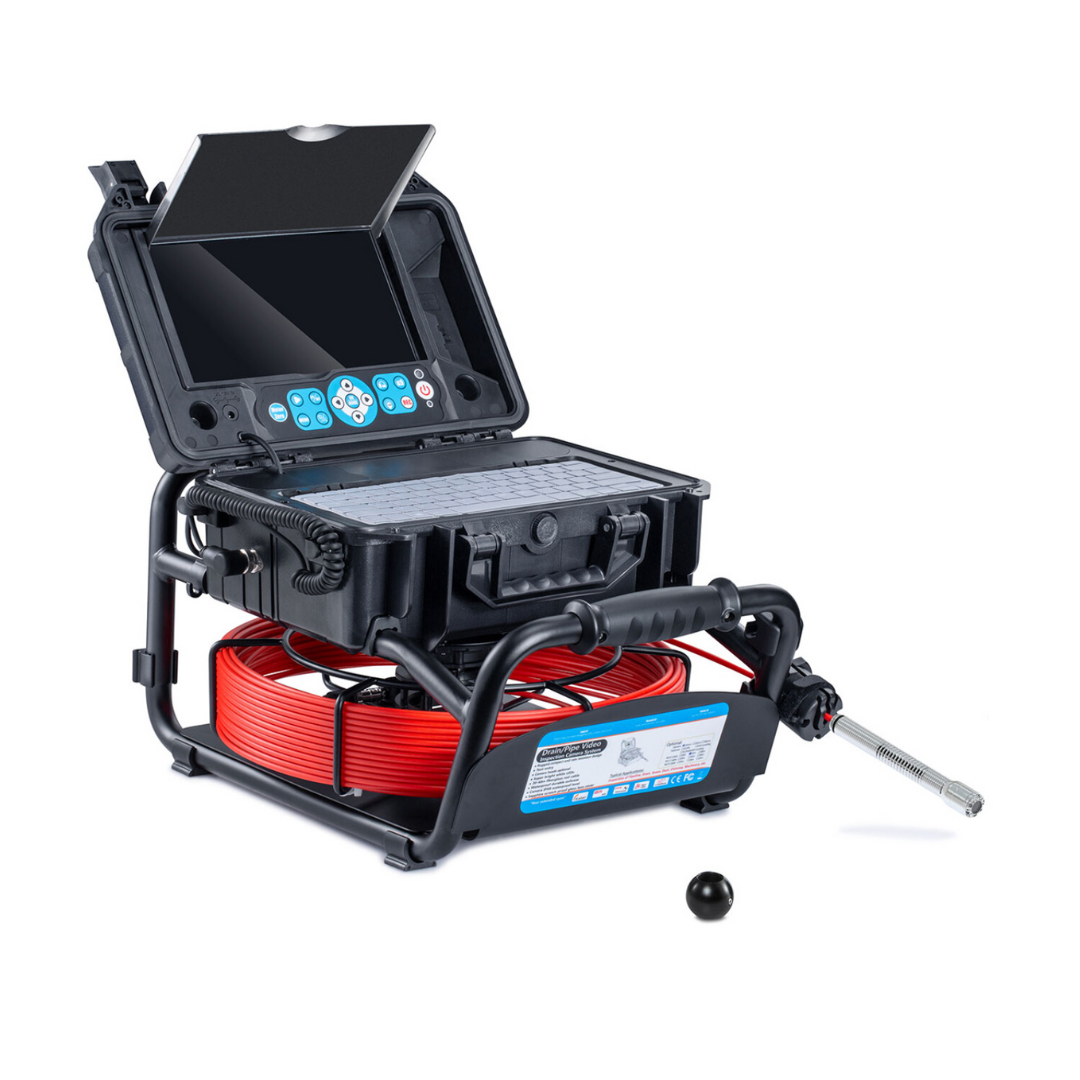

The "all-in-one" system (camera, fibre optic push cable up to 40m, push rod on reel, monitor, keyboard and remote control) offers you the necessary equipment in its enormously compact design to inspect pipes in the range from Ø 32 mm to Ø 90 mm. Thanks to the "upright image function" you will never lose your orientation in the pipe and thanks to the 9 LED lights with adjustable luminosity you will always have the ideal illumination for any pipe diameter.
The operating elements on the camera and on the remote control are provided with self-explanatory symbols, so that a quick familiarisation is possible.
Easy-to-understand operating software allows settings to be made at any time during the survey and the metre counter to be reset. The settings are visible in the stored video after using the channel camera. Recorded images and videos are immediately saved on the SD card and can be transferred directly to the PC in the office.
A software module for 3D pipe runs, posture graphics, possibly required DIN-compliant documentation is not included.
